Self-Cleaning Aquatrainer

17fX Swim Spa

The AquaTrainer 17fX swim spa has two multi-hydrotherapy massage seats making it a pool, hot tub and aquatic gym all-in-one. But has the added output of our two high performance adjustable wide stream swim jets and one core stream jet. This allows you to adjust the current from a gentle front crawl to a 1:02 min. hundred meter swim pace, a challenge for even a competitive swimmer.

1 - 4HP Evergreen Single Speed Pump
2 - 5 HP Aqua Boost Swim Pumps
2 - High Performance Wide Stream AquaFlo Swim Jets
1 - High Flow Corestream Swim Jet
2 - 4Kw Heaters
1 - HydroClean Filtration Pump
2 Persons Hydrotherapy Seating
20 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
210" x 93"
533 cm x 236.2 cm

Height
49"
124.5 cm

Volume
2181 US gallons
8257 L

Weight Full
20,830 lbs
9,451 Kg

Weight Empty
2,627 lbs
1,194 Kg

HydroGuide - Self-Clean Aquatrainer 17' fX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.	Ambient Outdoor Temperature	Monthly Cost
	LOW: 45F / 7C	$58.60
	HIGH: 75F/24C	$26.46
North American Wattage / 100 Gallons: 15.50 W

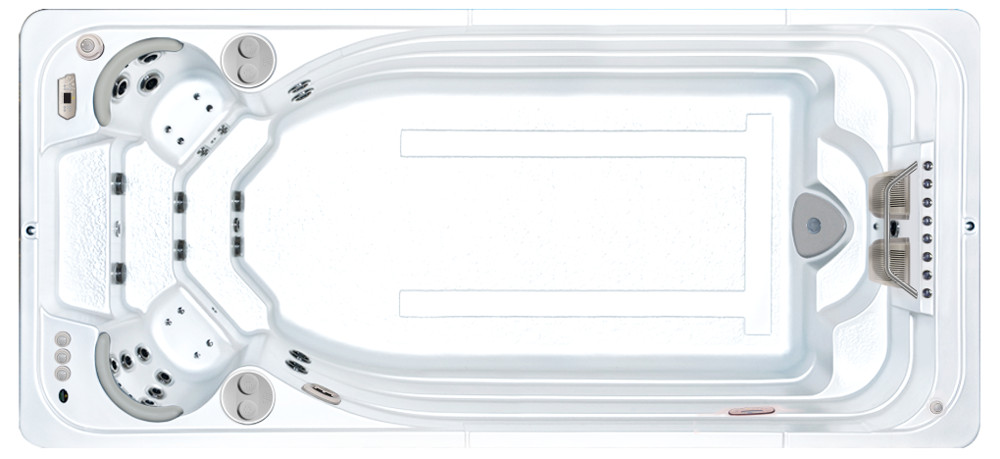

May not be exactly as shown.

Spec & Jet Diagram

Jets and Plumbing . 3HP Evergreen Single Speed Pump (19Fx is a 4HP)	--
. 5HP Aquaboost Swim Pumps	2
. HydroClean Plus Filtration Pump
. Slitstream Bouyancy Jet
. Adjustable Thigh Jets	4
. Total Stainless Steel Hydro Flow Hydrotherapy Jets	20

Electronics . 4 KW Heater - Hot Tub	-- 2
. Isolation Valves and a programmable Filtration Timer

Fitness . Aquacord Anchor for Body Board and Tether	--

Standard Features . Automatic Chemical Feeder	--
. Steel Support Package
. LED Light	2
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Hard Cover
. Self Clean filtration System
. Swimspa Water Watch
. Insulated Plastic Base
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control
. 24in Exercise Bar

Warranty . 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)	--

Cabinet . Factory Installed Cabinet & Frame	--

Swim . AquaPro Current Control	--
. High Flow V-Twin Swim Jet	2

Design . Three Stage Acrylic Polymer Shell	--

Spa Capacity . Seating (Persons)	-- 2

Model Specifications . Height (inches)	-- 49
. Height (cm)	124.5
. Shell Dimensions (inches)	17ft6inx7ft9in
. Shell Dimensions (cm)	533.4x236.2
. Volume (US gallons)	2,181
. Volume (Litres)	8,257
. Weight Full (Lbs)	20830
. Weight Full (Kg)	9451
. Weight Empty (Lbs)	2627
. Weight Empty (Kg)	1192
