Self-Cleaning AquaSport

19' dtfx Swim Spa

The AquaSport 19 DTfX has it all. It's a swim spa and hot tub all in one - this dual zoned swim spa delivers the ultimate in flexibility, and has the best of both worlds with a separately controlled and operated swim spa and hot tub. This swim spa and hot tub combo is also a fiberglass reinforced acrylic one piece mini-pool / hot tub that provides you the ultimate room to swim, jog, exercise or just relax and rejuvenate with family or friends. Plus it creates even more time for what matters as both feature our exclusive self-cleaning system. You won't find another swim spa or hot tub like ours anywhere.

SWIM SPA

1 - 4HP Evergreen Single Speed Pump
1 - 5 HP Aqua Boost Swim Pump
2 - High Flow Corestream Swim Jets
1 - Buoyancy Jet
1 - 4Kw Heater (optional upgrade to 2nd 4kw heater)
1 - HydroClean Filtration Pump

HOT TUB

1 - 4HP Evergreen Two Speed Pump
1 - HydroClean Filtration Pump
35 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
226" x 93"
574 cm x 236.2 cm

Height
53"
135 cm

Volume
Swim Spa
1762 US gallons
6670 L
Hot Tub
315 US gallons
1192 L

Weight Full
22,000 lbs
10,073 Kg

Weight Empty
4,000 lbs
1,818 Kg

HydroGuide - SWIM SPA AquaSport 19' DTfX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.	Ambient Outdoor Temperature	Monthly Cost
	LOW: 45F / 7C	$49.00
	HIGH: 75F/24C	$22.13
North American Wattage / 100 Gallons: 15.07 W

HydroGuide - HOT TUB AquaSport 19' DTfX
This hot tub meets or exceeds the energy efficiency standards defined by the California Energy Commission.	Ambient Outdoor Temperature	Monthly Cost
	LOW: 45F / 7C	$14.72
	HIGH: 75F/24C	$6.65
North American Wattage / 100 Gallons: 15 W

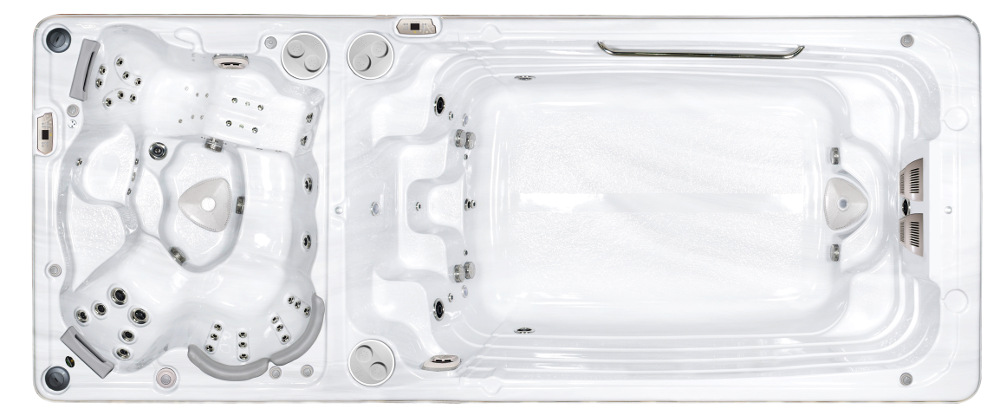

May not be exactly as shown.

Spec & Jet Diagram

Jets and Plumbing . 3HP Evergreen Single Speed Pump (19Fx is a 4HP)	--
. 4HP Evergreen Two Speed Pump
. 5HP Aquaboost Swim Pumps
. HydroClean Filtration Pump
. HydroClean Plus Filtration Pump
. Corestream Bouyancy Jet
. Hydro Flow Hydrotherapy Jets	35
. High Flow Aquastream Swim Jets (1 Buoyancy Jet)	2

Electronics . 4 KW Heater - Hot Tub	-- 2
. Isolation Valves and a programmable Filtration Timer

Fitness . Aquacord Swim Tether	--

Standard Features . Automatic Chemical Feeder	--
. Galvanized Steel Support Package
. LED Light	4
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Hard Cover
. Self Clean filtration System
. Swimspa Water Watch
. Insulated Plastic Base
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control
. 24in Exercise Bar

Warranty . 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)	--

Cabinet . Factory Installed Cabinet & Frame	--

Swim . AccuFlo Swim Jets	-- 2

Design . Three Stage Acrylic Polymer Shell	--

Spa Capacity . Seating (Persons)	-- 4

Model Specifications . Height (inches)	-- 53
. Height (cm)	135
. Shell Dimensions (inches)	93x226
. Shell Dimensions (cm)	236x574
. Hot Tub Volume (US gallons)	315
. Hot Tub Volume (Litres)	1192
. Swimspa Volume (US gallons)	1762
. Swimspa Volume (Litres)	6670
. Weight Full (Lbs)	21317
. Weight Full (Kg)	9672
. Weight Empty (Lbs)	4000
. Weight Empty (Kg)	1815
