Self-Cleaning AquaSport

17fX Swim Spa

The AquaSport 17fX swim spa has two multi-hydrotherapy massage seats making it a pool, hot tub and aquatic gym all-in-one. This swim spa is also a fiberglass reinforced acrylic one piece mini-pool that provides you more room to swim, jog, exercise or play than their 14 foot cousin. Remember this swim spa and all of our other swim spa models because they require less space, cost less money and require less maintenance than a conventional pool.

1 - 4HP Evergreen Single Speed Pump
1 - 5 HP Aqua Boost Swim Pump
2 - High Flow Corestream Swim Jets
1 - Buoyancy Jet
1 - 4Kw Heater (optional upgrade to 2nd 4kw heater)
1 - HydroClean Filtration Pump
2 Persons Hydrotherapy Seating
13 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
210" x 93"
533 cm x 236.2 cm

Height
49"
124.5 cm

Volume
2181 US gallons
8257 L

Weight Full
20,830 lbs
9,451 Kg

Weight Empty
2,627 lbs
1,194 Kg

HydroGuide - Self-Clean AquaSport 17' fX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.	Ambient Outdoor Temperature	Monthly Cost
	LOW: 45F / 7C	$58.60
	HIGH: 75F/24C	$26.46
North American Wattage / 100 Gallons: 15.07 W

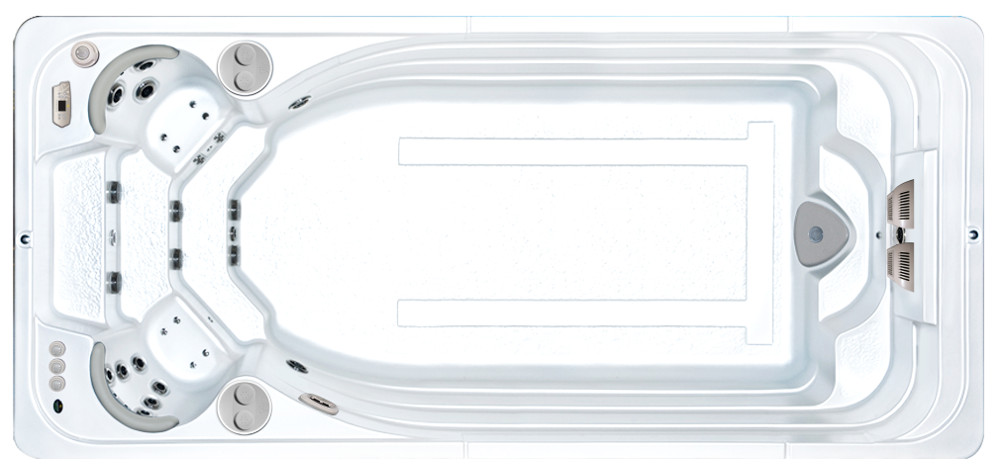

May not be exactly as shown.

Spec & Jet Diagram

Jets and Plumbing . 3HP Evergreen Single Speed Pump (19Fx is a 4HP)	--
. 5HP Aquaboost Swim Pumps
. HydroClean Plus Filtration Pump
. Corestream Bouyancy Jet
. High Flow Aquastream Swim Jets (1 Buoyancy Jet)	2
. Total Stainless Steel Hydro Flow Hydrotherapy Jets	13

Electronics . 4 KW Heater - Optional upgrade to 2nd 4kw Heater	--
. Isolation Valves and a programmable Filtration Timer

Fitness . Aquacord Anchor for Body Board and Tether	--

Standard Features . Automatic Chemical Feeder	--
. Galvanized Steel Support Package
. LED Light	2
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Hard Cover
. Self Clean filtration System
. Swimspa Water Watch
. Insulated Plastic Base
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control
. 24in Exercise Bar

Warranty . 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)	--

Cabinet . Factory Installed Cabinet & Frame	--

Swim . AccuFlo Swim Jets	-- 2

Design . Three Stage Acrylic Polymer Shell	--

Spa Capacity . Seating (Persons)	-- 2

Model Specifications . Height (inches)	-- 49
. Height (cm)	124.5
. Shell Dimensions (inches)	17ft6inx7ft9in
. Shell Dimensions (cm)	533.4x236.2
. Volume (US gallons)	2181
. Volume (Litres)	8257
. Weight Full (Lbs)	20830
. Weight Full (Kg)	9451
. Weight Empty (Lbs)	2627
. Weight Empty (Kg)	1192
